Flex Arm Microscopes

Articulated positioning for complex tasks

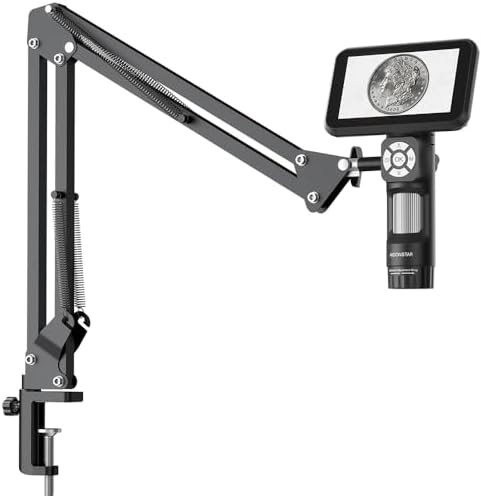

Flex arm microscopes replace the traditional rigid vertical pillar with a multi-jointed or gooseneck support system. This design allows the optical head to be positioned at various angles, which is essential for inspecting large circuit boards or mechanical parts that cannot be easily moved. The arm often attaches to a workspace via a heavy base or a C-clamp to maximize desk space.

Stability and reach in digital systems

These instruments are frequently paired with digital sensors and integrated screens to provide a live feed of the workspace without requiring the user to lean over an eyepiece. The flexible boom provides a wide range of motion, allowing the camera to hover directly over a specific component or tilt for a side-profile view. This flexibility is supported by: locking joints, tension-adjustable segments, rotating head mounts.

Screen integration and viewing options

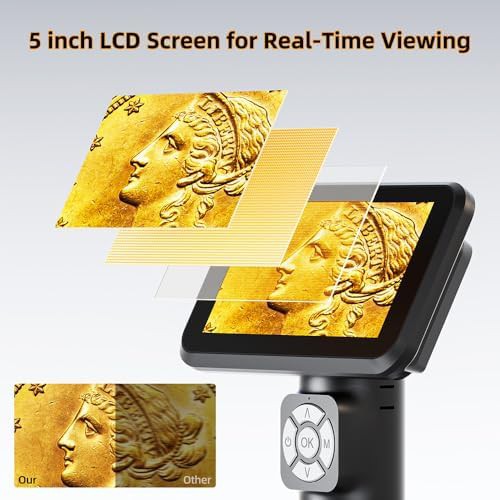

Models in this category often feature large displays, such as five-inch or ten-inch LCD panels, mounted directly to the flexible assembly. This configuration ensures that the screen remains at eye level even when the camera is angled toward a difficult-to-reach spot. High-definition outputs like HDMI are common, allowing the flex-arm unit to transmit 4K or 30FPS video to larger external monitors for collaborative work.

Materials and mounting hardware

The arms are typically constructed from durable metals to prevent sagging or vibration during high-magnification tasks. Mounting options vary to suit different work surfaces, ensuring the instrument remains secure while the arm is fully extended. Common hardware features include: heavy-duty C-clamps, weighted steel bases, integrated LED ring lights, autofocus camera modules.
