Soldering Microscopes

Requirements for electronics repair

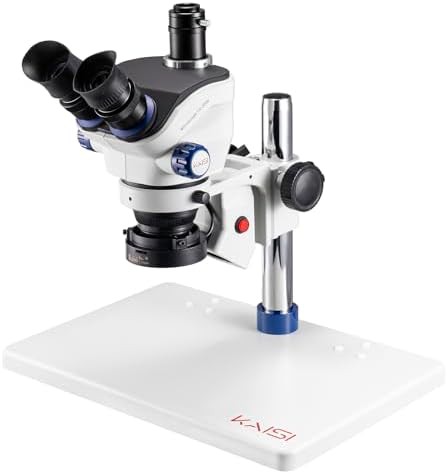

Soldering microscopes are defined by their generous working distance, which provides enough physical space between the lens and the circuit board for a soldering iron and tweezers. This clearance is essential for preventing heat damage to the optics while allowing the technician to manipulate small components like surface-mount resistors.

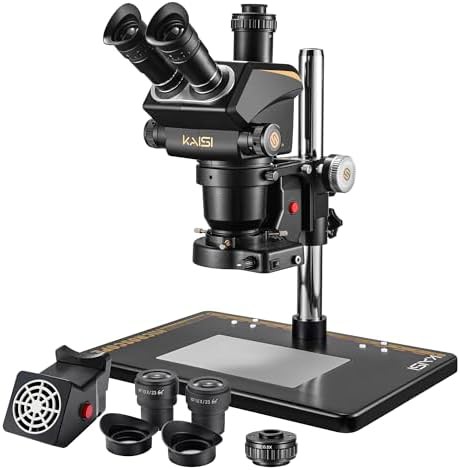

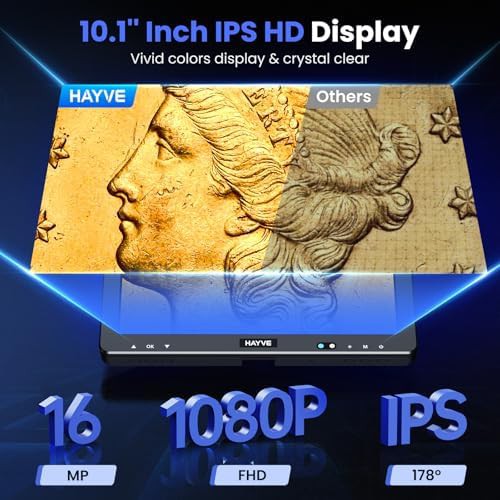

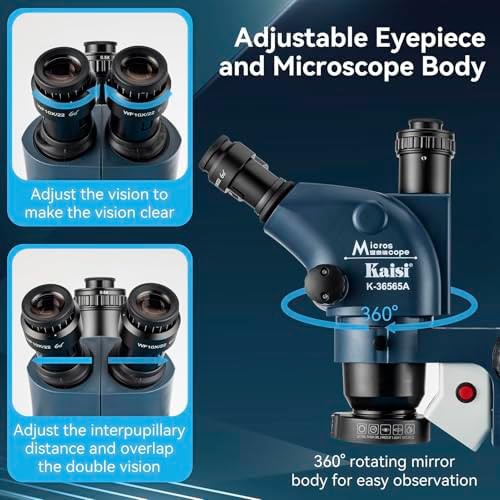

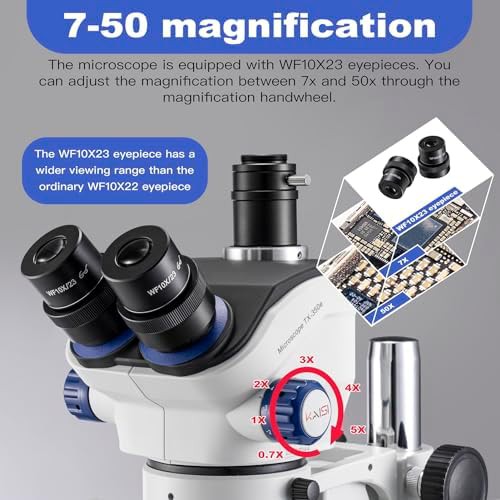

High-definition displays or wide-field eyepieces ensure that the user can identify cold solder joints or hairline fractures in traces. The focus systems are built for stability, ensuring the image does not drift while the user is applying pressure to the workpiece.

Physical formats and mounting

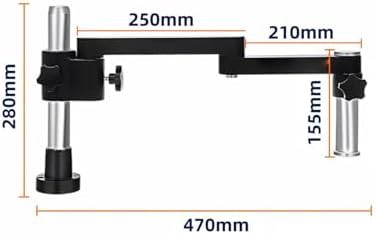

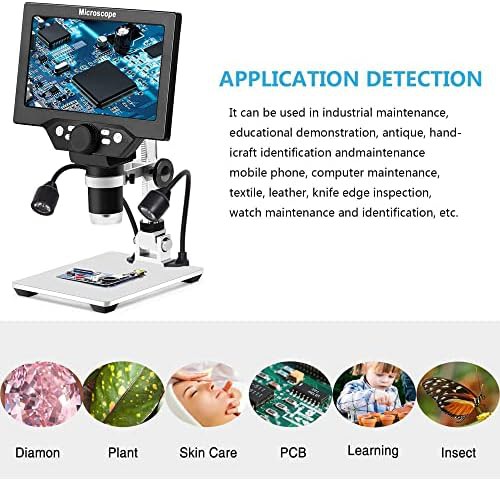

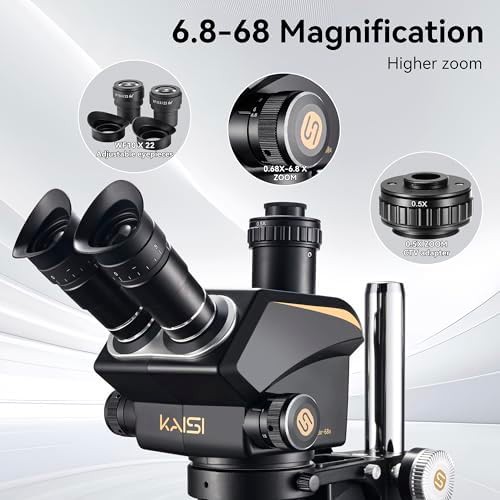

These instruments often utilize flexible boom arms or sturdy pillar stands to position the head over large motherboards. Digital versions frequently feature integrated screens ranging from seven to ten inches, providing a real-time feed that reduces neck strain during long repair sessions.

Limitations of the soldering format

A soldering microscope is not intended for high-magnification biological work such as viewing bacteria or blood cells. The optical path is optimized for depth of field and a wide view of three-dimensional objects rather than the extreme magnification required for transparent slides.

Integrated digital features

Many modern soldering units include the ability to capture high-resolution images or video of a repair for documentation or client review. These digital interfaces often support external monitor connections via HDMI to provide a larger viewing area for collaborative work or training. Storage for these captures is typically handled by onboard memory cards, with capacities often reaching: 16gb, 32gb.
