Trinocular Microscopes

Dedicated ports for digital documentation

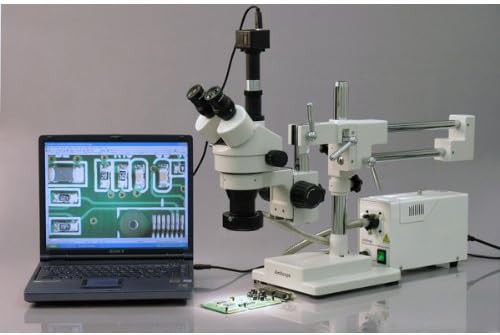

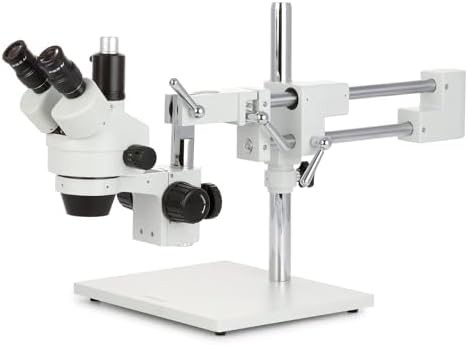

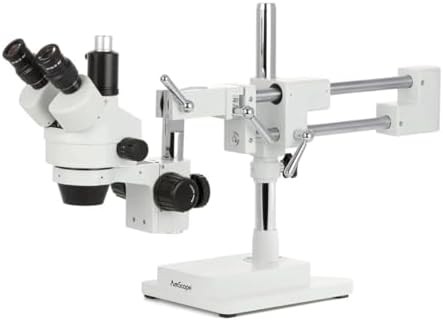

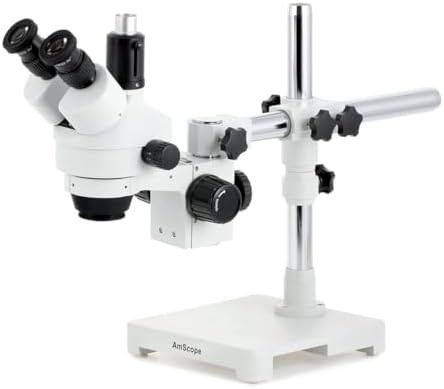

Trinocular microscopes are defined by a third optical path that allows a camera to remain permanently mounted while the user observes through the dual eyepieces. This configuration eliminates the need to swap an eyepiece for a camera, which preserves the workflow during time-sensitive research or jewelry inspection. The vertical port is often adjustable to ensure that the camera sensor and the user's eyes are in focus at the same time.

These instruments are frequently built with research-grade components, including Plan Infinity objectives that correct for spherical aberration across the entire field of view. The heavy base and sturdy arm provide the necessary support for the additional weight of imaging equipment and external monitors. This design is preferred for professional environments where capturing high-resolution video or photos is as important as the live observation itself.

Advanced optical and mechanical features

The internal prisms are designed to split light efficiently between the eyepieces and the camera port, maintaining a bright image even at magnifications up to 5000X. Many models include a two-layer mechanical stage that allows for ultra-precise positioning of the specimen under the objective lens. This level of control is vital when using high-power lenses where the depth of field is extremely shallow and the subject must be centered perfectly.

The construction typically involves metal frames and glass optics, ensuring durability and clarity over years of professional use. Beyond biological applications, these units are also utilized for specialized tasks like gemstone analysis or electronic repair when configured with lower magnification ranges. Common magnification settings available in this format include: 7X, 40X, 1000X, 2000X, 2500X, 5000X.

Lighting is usually provided by high-intensity LED systems that offer variable brightness control to suit different specimen densities. The inclusion of an Abbe condenser with an iris diaphragm allows for fine-tuning the light cone to match the numerical aperture of the objective lens. These professional tools are often finished in neutral tones to fit into clinical or industrial spaces, appearing in: black, blue, white.
